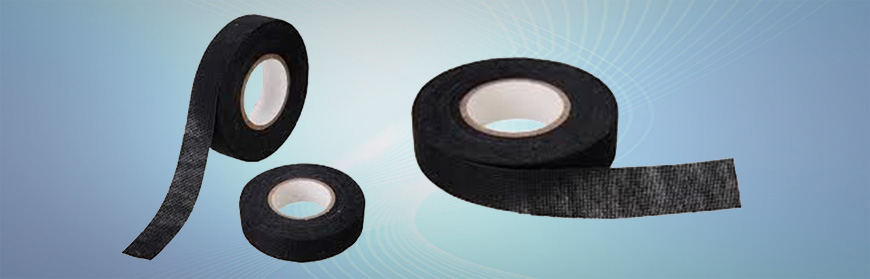

TAPES FOR WIRING HARNESS

APPLICATION - Majorly used in Automotive Industry - YELLOW Reflective Tape is applied on bothside of the vehicle, horizontally as it is similar to the tail lights. - RED Reflective Tape for car is applied on the back side of the vehicle as it is similar to the tail Lights - WHITE Reflective Tape is applied on the front of the vehicle about the HeadLights FEATURES Satisfy both Horizontal and Vertical Orientation as per AIS 090 standard The prismatic film next-generation product High reflectivity/visibility Excellent daytime brightness Vivid color High UV stability Lamination/sealing on the tape to resist scratch marks Thicker tape 420 micron(min.) Four-layer tape, Long durability, Excellent workability   SPECIFICATION Product Code RV 5001(YELLOW), RV5000(WHITE) & RV 5005(RED) Thickness 420+/- 5% (YELLOW & WHITE), 490+/-5%(RED) Size 50mmx50m (Can be flexible as per request) Adhesive Acrylic Product Type Sealing Type Micro Prismatic Tape Durability 7-8 years outdoor(UV Resistance) Storage 14 – 18 degree temperature Relative Humidity 30-50%(1 Year) Approvals ECE 104(Class C), FMVSS 108 (DOT-C2), DENATRAN, AIS-090
